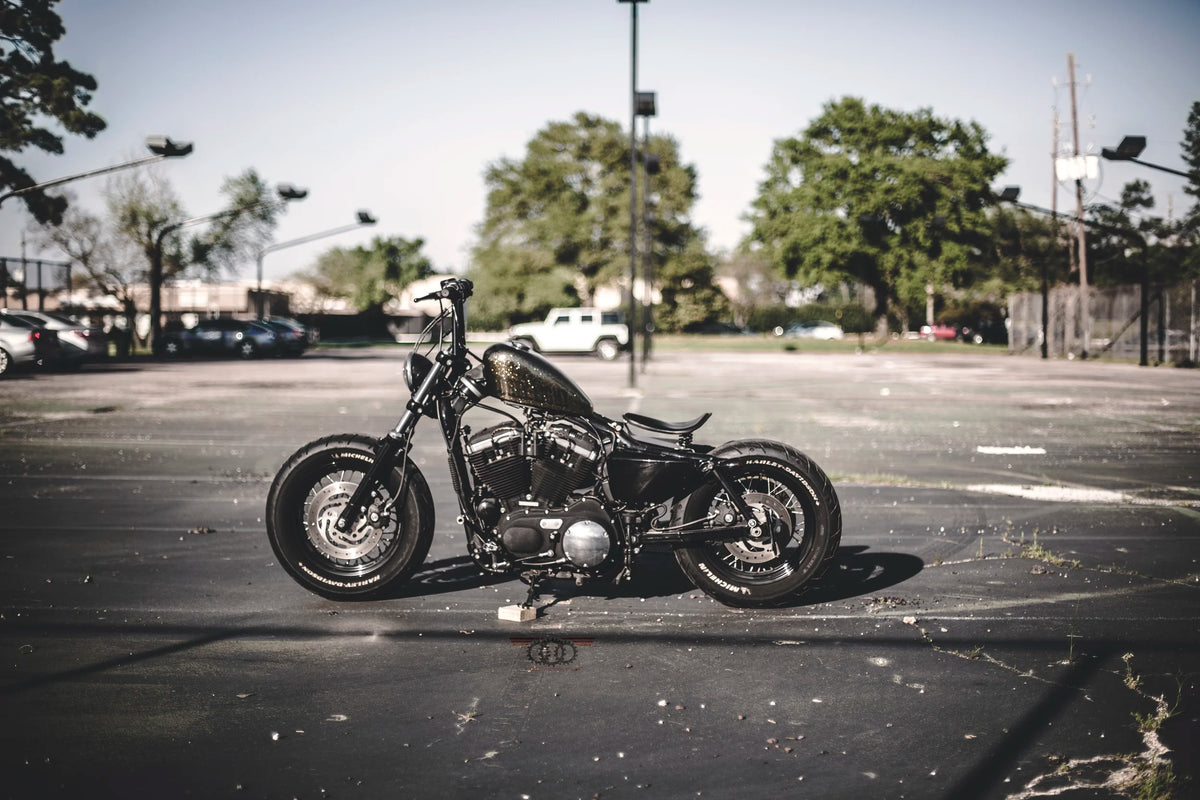

Tank Lift Kit with Coil and Key Relocation for Harley-Davidson Sportster (1995–2022)
$99.00
The Complete Tank Lift & Coil + Key Relocation Kit raises the fuel tank and repositions the ignition coil and key switch on Harley-Davidson Sportster models, creating additional frame clearance and a minimal upper-frame layout within a bolt-on system.
Kinetic Motorcycles
USA Designed & Made
Worldwide Shipping
High Precision Motorcycle Parts
Product Information
The Complete Tank Lift & Coil + Key Relocation Kit is engineered to modify the upper-frame layout of Harley-Davidson Sportster models by combining a front tank lift, left-side coil relocation, and rear-cylinder key-switch relocation.
This configuration increases working space beneath the tank, allows wire management along the backbone, and consolidates ignition components into dedicated mounting positions.
Carbureted 1995–2003 models retain the original choke location. 2004–2006 EFI models include an integrated choke-relocation bracket. For 2007–2018+ models, the coil and key relocation install as shown in reference configurations.
All brackets are constructed from high-heat-resistant materials with a black powder-coated finish. The included 8mm suppression-core spark plug wires are available in multiple color options.
Specifications
Coil Relocation Bracket
Powder-coated steel
Key Relocation Bracket
Powder-coated steel
Tank Lift Risers
Front lift hardware included
Spark Plug Wires
8mm suppression-core, cloth-wrapped, silicone insulated
Compatibility
Carbureted and EFI Sportster platforms
Installation Type
Bolt-on
Included Hardware
Mounting hardware and instructions
Features
- Raises the tank to create space for wire routing
- Relocates the coil to the left side of the engine
- Positions the key switch behind the rear cylinder
- Supports cleaner frame lines and reduced visual hardware
- Year-specific choke-relocation integration where applicable
- 8mm spark plug wires available in 19 color variations
- Bolt-on installation requiring no cutting or welding
Fitment
Iron 883
Nightster
Forty-Eight
Seventy-Two
Roadster
1200 Custom
Model Notes:
- 1995–2003 carbureted models: No choke relocation required
- 2004–2006 EFI models: Integrated choke-relocation bracket included
- 2007–2018+ EFI models: Coil and key installation follows reference configuration
- Optional rear tank lift risers may be required on pre-2003 models
Why Choose
Consolidates multiple upper-frame modifications into one system
Improves airflow and wire management
Maintains compatibility with factory mounting points
Supports cleaner visual presentation
Powder-coated steel brackets for long-term durability
High-temperature-resistant construction
FAQs
Is the kit compatible with 2002 carbureted models?
Yes. The kit fits 1995–2003 carbureted models and does not require choke relocation.
Are cutting or welding operations necessary?
No. The components install using a bolt-on process.
Are spark plug wires included?
Yes. The kit includes an 8mm suppression-core wire set with multiple color options.
Can a rear tank lift be added?
Yes. Rear risers are available separately in the Accessories section.
What is the function of the tank lift?
The lift increases space along the frame backbone for wire routing and airflow.
